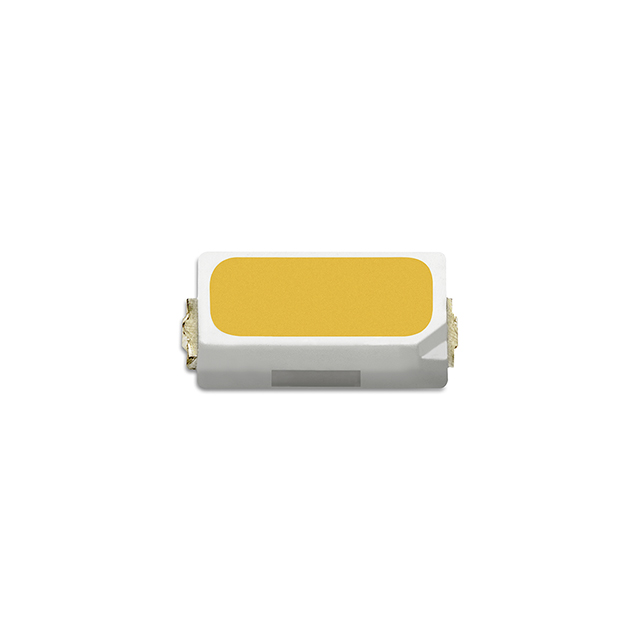

飛利浦LUXEON 3014?燈珠

性能與利益
行業標準尺寸與封裝，兼容現有設計
65°C暖光設計，確保更佳的顏色準確度
矩形封裝設計，提高一致性
最大驅動電流為 120mA ，實現超卓價值

應用:室內區域照明,燈泡,特殊照明,單色 LED
通道照明,標牌

服務熱線：0755-27934948

LUXEON 3014 采用行業標準兼容尺寸，可輕松裝入現有的 3014 插座，支持 3.0mm x 1.4mm x 0.75mm 封裝。LUXEON 3014 是適合 65℃ 工作條件的暖光解決方案。該低功率設備尤其適合需要確保一致性及減少斑點的室內設計。

For more information on LUXEON 3014 legacy product, please refer to the product datasheet.
Product performance at 60mA and 30mA Tj=25°C.

NOMINAL CCT	MINIMUM CRI	LUMINOUS FLUX (LM) @ 60MA		TYPICAL LUMINIOUS EFFICACY (LM/W)	TYPICAL LUMINOUS FLUX (LM)	TYPICAL LUMINOUS EFFICACY (LM/W)	PART NUMBER
		MINIMUM	TYPICAL	TYPICAL LUMINIOUS EFFICACY (LM/W)	TYPICAL LUMINOUS FLUX (LM)	TYPICAL LUMINOUS EFFICACY (LM/W)
		60MA			30MA
8000K	70	25	28	150	15	172	L130-8070001400001
10000K	70	23	27	145	14	166	L130-1070001400001
2200K	80	19	22	118	12	135	L130-2280001400001
2500K	80	21	24	129	12	148	L130-2580001400001
2700K	80	23	26	140	13	161	L130-2780001400001
3000K	80	23	26	140	13	161	L130-3080001400001
3500K	80	23	26	140	13	161	L130-3580001400001
4000K	80	25	28	150	15	172	L130-4080001400001
5000K	80	25	28	150	15	172	L130-5080001400001
5700K	80	25	28	150	15	172	L130-5780001400001
6500K	80	25	27	145	15	166	L130-6580001400001
2200K	90	16	18	97	9	99	L130-2290001400001
2700K	90	18	20	102	11	118	L130-2790001400001
3000K	90	19	20	102	11	118	L130-3090001400001
3500K	90	19	22	113	12	129	L130-3590001400001
4000K	90	20	23	113	12	129	L130-4090001400001
5000K	90	20	23	118	13	140	L130-5090001400001
5700K	90	20	23	118	13	140	L130-5790001400001
6500K	90	20	23	113	12	129	L130-6590001400001
